Diverse & Customized Connectivity Solutions
Orient’s Other Products portfolio encompasses a variety of high-quality, purpose-built cabling solutions. As a trusted EV charging cable manufacturer, we offer AC EV charging cables compliant with IEC 62893-3/EN 50620 for safe, efficient charging in public stations, home setups and commercial hubs.
We also manufacture precision keystone jacks, ideal for audio, video and Ethernet installations, featuring re-terminable IDC contacts and dual color coding for versatile wiring.
Our power cords, power strips and tethered drone system cables are engineered for reliability and performance across diverse applications—from device power supply to aerial deployment.
Orient excels as a power cords manufacturer, power strips manufacturer, tethered drone cable manufacturer, alongside its EV and keystone jack product lines, delivering flexible, high-standard electrical and communication solutions.

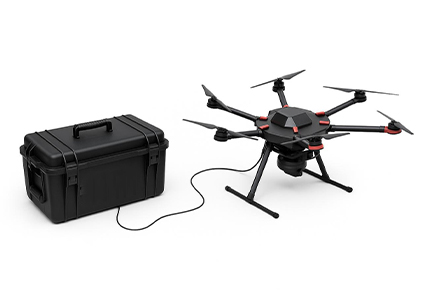

Tethered Drone System
Physical specs
| Item | Specification |
|---|---|
| System type | Vehicle- / roof-mount tethered multirotor kit |
| Flight endurance | 24 h continuous hover |
| Tether length | 100 m (328 ft) Kevlar-reinforced power + fibre cable |
| Max. usable altitude | 100 m AGL (limited by tether) |
| Payload capacity | 15 kg standard / 22 kg max (EO/IR gimbals, relay nodes, etc.) |
| Ground-station | size (L × W × H) 600 × 500 × 400 mm |
| System mass | ≈ 35 kg incl. motorised drum |
| Ingress protection | IP 54 (aerial & ground modules) |
Electrical & Power Specifications
| Parameter | 3.5 kW Module | 8.1 kW Module | Note / Protection |
|---|---|---|---|
| Input (from ground) | 300 – 410 V DC, < 12 A | 750 V DC, < 11 A | From ground PSU |
| Output to UAV | 50 V DC (12 S), 0 – 70 A | 50 V DC (12 S), 0 – 162 A XT60 / XT90 | connectors |
| Ground-station AC feed | 90 – 270 V AC, 50–60 Hz, 7 kW max | — | Mains or 5 – 7 kW genset |
| Protections | — | — | UVP/OVP, OCP, OTP, short-circuit, reverse-polarity (both modules) |
| Cooling | Single fan | Three fans | Forced-air |
Operational Capabilities
| Item | Capability |
|---|---|
| Deployment time | < 5 min auto take-off / land |
| Climb rate | 2 m s⁻¹ (tether reel synced) |
| Follow-me speed | ≤ 20 km h⁻¹ vehicle motion |
| Data throughput | 100 Mb s⁻¹ over single-mode fibre (100 Gb s⁻¹ capable) |
| GNSS-denied tracking | Hidden GPS + inertial tracker aboard tether hub |
Tether Cable Specification
| Attribute | Value | Standard / Test |
|---|---|---|
| Conductors | Silver-plated Cu, 10 A, 750 V DC | — |
| Optical fibre | 1 × 250 µm SM; IL ≤ 0.3 dB | IEC 60794-1 |
| Diameter / weight | 4.2 mm Ø / 27 g m⁻¹ | — |
| Bend radius | 200 mm | IEC 60794-1-E11 |
| Crush resistance | PASS (test block) | IEC 60794-1-E3 |
| Abrasion | > 36 000 cycles | SAE AS4373 |
| Tensile modulus | 3.8 GPa | — |
| Flammability | IEC 60332-1 compliant | — |
| Environmental | 80–90 % RH; resists salt, water, diesel, hydraulic oil | — |
Environmental Characteristics
| Condition | Range / Result |
|---|---|
| Operating temperature | –20 °C … +75 °C |
| Storage temperature | –20 °C … +50 °C |
| Ingress protection | IP 54 (dust & splash) |
| Fluid resistance | < 1 % mass gain (salt-water, diesel) / < 2.5 % (hydraulic oil) |
Packaging & Deployment
| Feature | Detail |
|---|---|
| Transit case | One-man-lift Peli-style IP-rated case with integrated motorised reel † |
| Cable cartridges | Quick-swap, field-replaceable † |
| Interface leads | Pre-terminated XT60 / XT90 (DC) & fibre connectors for rapid integration |
EV Charging Cable & Gun
Application: AC EV Charging Cable & Gun are designed for the safe and efficient transfer of electrical energy from EV charging stations to electric vehicles. These cables are intended for use in mode 2 and mode 3 charging systems for AC charging infrastructure, commonly used in:
1 Public and private EV charging stations
2 Home charging points
3 Commercial vehicle charging hubs
4 Indoor and outdoor applications (with UV and weather resistance)
Power Cord
Application: Power cords supply power to electronic devices and appliances, including dryers, computers, medical devices, and more. They must have a voltage rating and wire gauge appropriate for the regional electrical standards and power needs of their intended application.
Description: INDIA 6~16 AMPERE-250 VOLT POWER CORD, IS 1293:2019 TYPE M [IN1-16P] PLUG, BLACK.
Length: 2.5 METERS (As per customer requirement)
Notes:
* ISI mark, BIS approved.
* Cordage IS 694 type YY (PVC), Conductors: Black, Red, Yellow/Green.
* Temp. rating = -15°C to +70°C.
* Power cords, plugs, outlets, GFCI/RCD sockets, PDU power strips, plug adapters listed below.
About this item:
* ISI mark, BIS approved.
* Cordage IS 694 type YY (PVC), Conductors: Black, Red, Yellow/Green.
* Temp. rating = -15°C to +70°C.
* Power cords, plugs, outlets, GFCI/RCD sockets, PDU power strips, plug adapters listed below.
Power Strip/Extension Board
Application: Personal Computer, E-Reader, Speaker, Electric Fountain, Rice Cooker, Smartphone, Laptop, Water Boiler, Audio Sound System, Tablet, Monitor, Microwave Oven, Coffee Machine, Scanner, Light, Juicer, Hair Dryer, Heater, Fax Machine, Refrigerator, Home Theater, Noise Maker, Projector, Modem, Radio, Gaming Console, Smartwatch, Fan, Printer, Set Top Box, Camera, Television, Lamp, Air Conditioner, Mixer Grinder, Toaster, Iron, MP3 Player, Freezer.
Description: 4AC, 5USBA & 1C Port
Product Highlight: four-socket power strip. This device has one USB C port and five USB-A Port for charging.
This device can provide up to 18W used for charging mobile devices. Fast charging is compatible with PD devices
Length: 2.0M (3C X 0.50Sq.mm)
Notes:
* ISI mark, BIS approved.
* Cordage IS 694 type YY (PVC), Conductors: Black, Red, Yellow/Green.
* Temp. rating = -15°C to +70°C.
* Power cords, plugs, outlets, GFCI/RCD sockets, PDU power strips, plug adapters listed below.
About this item:
* Power strip Multiple ports, Universal Socket
* Power strip with 4 Universal sockets , 5 USBA & 1C ports for charging ensuring the safety of your devices
* Flame Retardant
* Child Safe Protection
* Hight temperature fuse protection, Input voltage surge protection
Keystone Jack
Application: A keystone jack is a female connector used in audio, video and data communications. It serves as a receptacle for a matching plug, which is a male connector of the same type as the jack. A plug is usually attached to the end of a cable or cord that is connected to another device, making it possible to connect the device to the keystone jack.
Keystone jacks are typically mounted in wall plates or patch panels, although they might also be included in surface-mount boxes. They are used extensively in local area networks based on Ethernet technologies.
Description: Keystone Jack (CAT 6 & CAT 6A UTP)
Features:
IDC Contacts that allow re-termination for Wiring Changes without Damaging the Unit
Dual Colour Coding Allows 568A/B Wiring Configuration
Can be Terminated Using Industry Standard Punch-down Tools
Gold Plated 50 Micron IDC Contacts
